UNO Q Weather Matrix: Live NWS Temp + LED Indicator

1. What It Does

The unoq-weather-matrix project turns an Arduino UNO Q into a desktop weather display. On a loop it:

1. Scrolls Scrimptech across the built-in 12×9 blue LED matrix
2. Scrolls Laurel MS
3. Shows the live temperature in °F (static, 5 seconds)

Meanwhile, all four onboard RGB LEDs act as one hot/cold indicator: blue below 99 °F, red at 99 °F or above. If the network fetch fails, the matrix scrolls NO NET and the LEDs go blue (safe fallback).

2. How It Works

The UNO Q is a dual-chip board: an STM32U585 MCU (Cortex-M33) plus a Qualcomm QCM2290 Linux companion. This project uses both halves at once.

The two control planes

The MCU fetches the temperature over the board's RouterBridge (IPC to the Linux router process), converts it to °F, and drives the matrix plus LED3/LED4. On the Linux side, a tiny Python script polls the same station and writes LED1/LED2 brightness through /sys/class/leds. Both halves compute the identical °F value, so the LEDs never disagree with the matrix.

3. Hardware

The Arduino UNO Q packs an STM32U585 MCU and a full Linux system on one board:

Where each LED is controlled from

The board

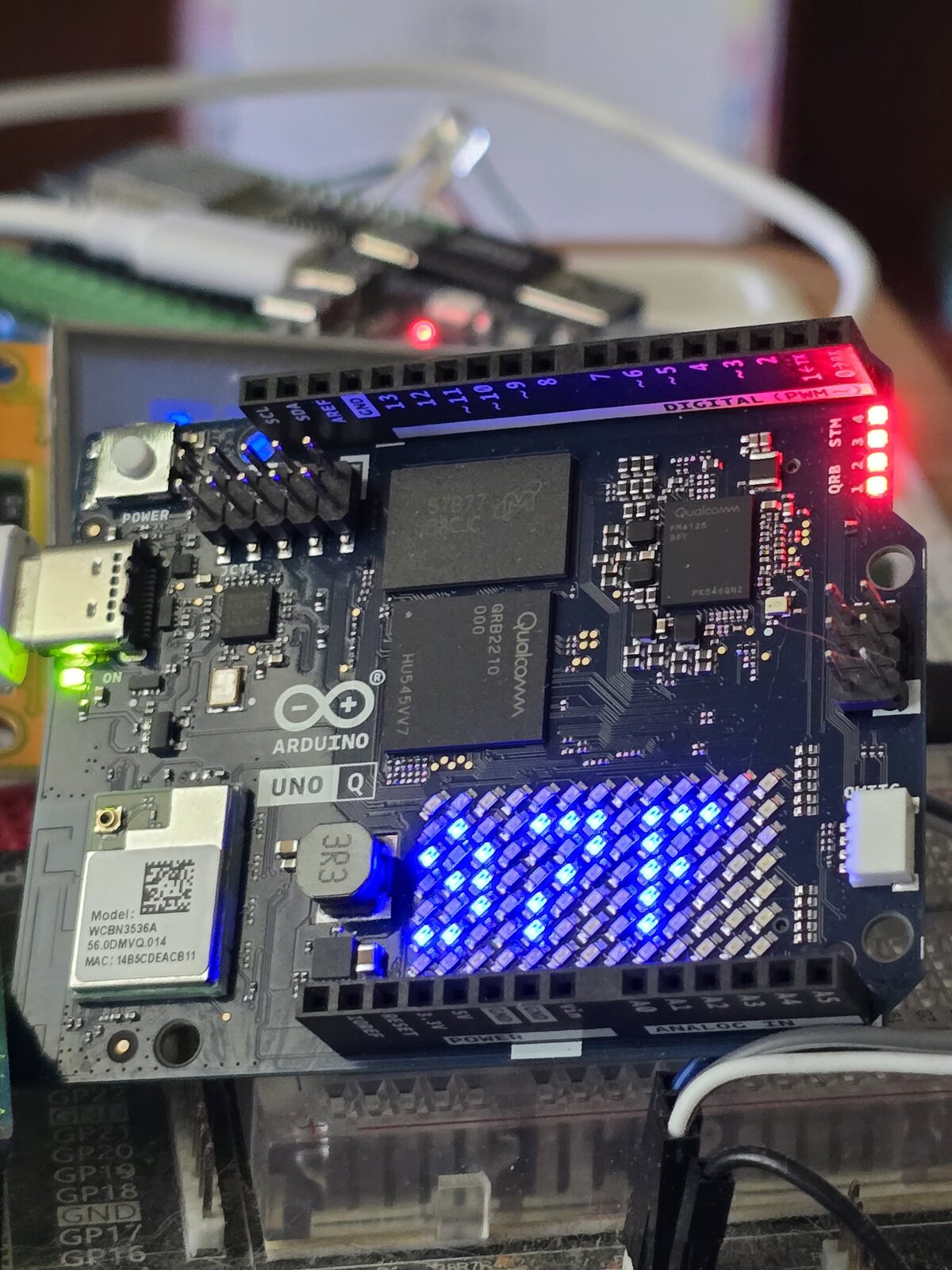

The UNO Q Weather Matrix on the desk — matrix scrolling the temperature, with the board sitting in its power state.

The Arduino UNO Q — a dual-chip board: STM32U585 MCU + Qualcomm QCM2290 Linux computer on a UNO footprint.

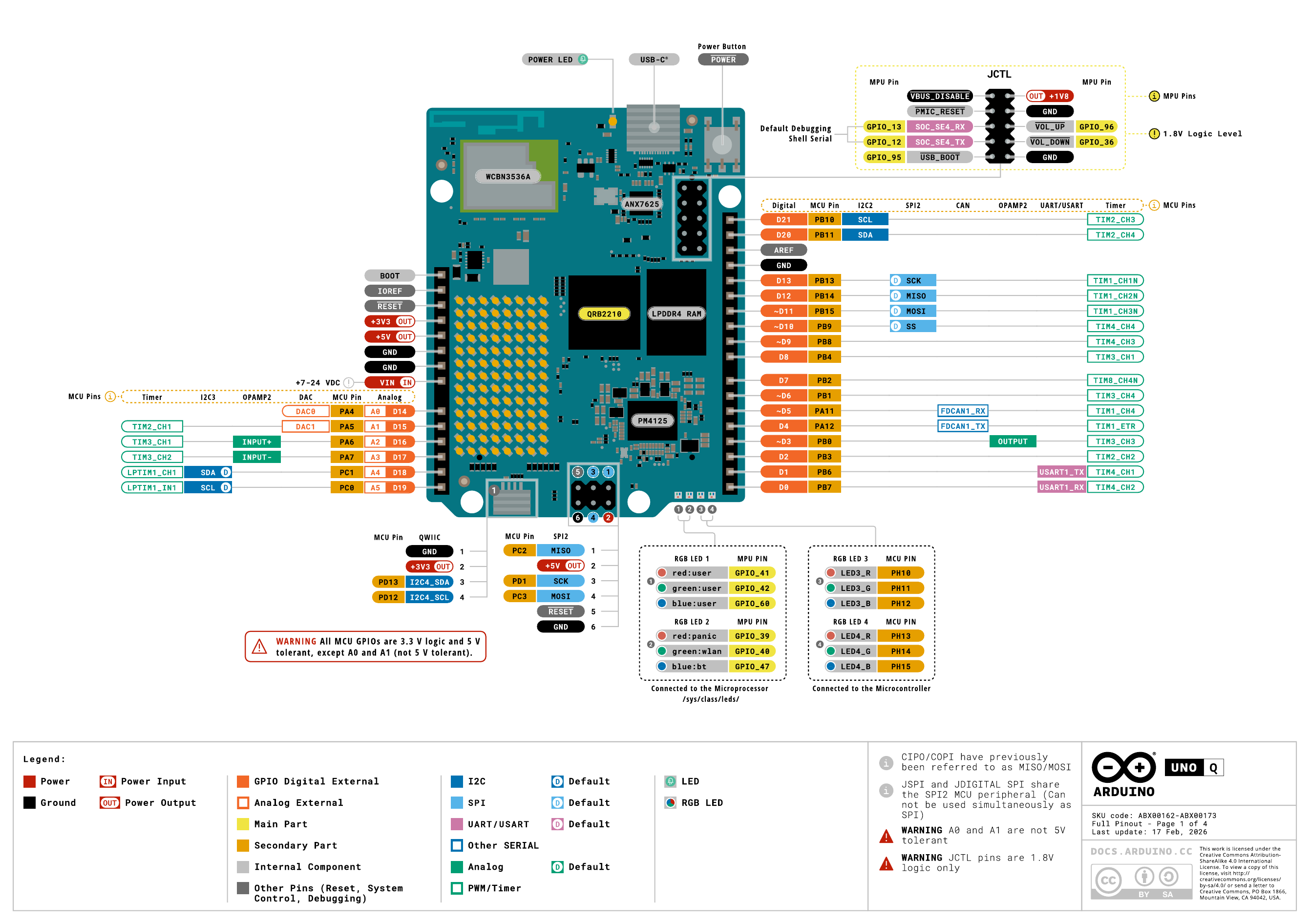

Reference pinout for the Arduino UNO Q. This project needs zero wiring — everything runs on the onboard matrix, LEDs, and the built-in Wi-Fi.

4. The Data Source

This project started on a forecast API, and the displayed value wobbled between fetches — the "current" field is interpolated, not measured. The fix was switching to real observations from the NOAA/NWS station at Laurel/Noble Field (KLUL), the nearest station to Laurel, MS (31.69, −89.13):

https://api.weather.gov/stations/KLUL/observations/latest

5. Project Structure

A two-file project, split across the two halves of the board:

unoq-weather-matrix/
├── unoq-weather-matrix.ino   ← MCU sketch: matrix + LED3/LED4
├── temp_leds.py              ← Linux companion: LED1/LED2
├── docs/notes.md             ← hands-on notes & gotchas
└── scripts/
    ├── flash.sh              ← arduino-cli compile + upload
    └── run_temp_leds.sh      ← push + start the companion

6. Code Walkthrough

6.1 setup(): bring up the two planes

void setup() {
  matrix.begin();
  matrix.textFont(Font_5x7);
  matrix.textScrollSpeed(100);
  matrix.clear();
  pinMode(LED3_R, OUTPUT);
  pinMode(LED3_G, OUTPUT);
  pinMode(LED3_B, OUTPUT);
  pinMode(LED4_R, OUTPUT);
  pinMode(LED4_G, OUTPUT);
  pinMode(LED4_B, OUTPUT);
  Bridge.begin();      // RouterBridge to the Linux side
}

The LED pins are declared OUTPUT up front, and Bridge.begin() wires the sketch to the board's router process for networking.

6.2 fetchCelsius(): get the real temperature

bool nws = false;
if (client.connectSSL("api.weather.gov", 443, "") >= 0) {
  nws = true;
}
if (nws) {
  client.println("GET /stations/KLUL/observations/latest HTTP/1.1");
  client.println("Host: api.weather.gov");
  client.println("User-Agent: arduino-unoq/1.0");
  client.println("Connection: close");
  client.println();
} else if (client.connect("api.open-meteo.com", 80) >= 0) {
  client.println("GET /v1/forecast?latitude=31.69&longitude=-89.13"
                 "&current_weather=true HTTP/1.1");
  client.println("Host: api.open-meteo.com");
  client.println("Connection: close");
  client.println();
} else {
  return -1000;   // no network at all
}
// read into resp[] for up to 10 s, then client.stop()

An empty cert string ("") tells the board's router to verify TLS against its own system CA store — the UNO Q ships with ISRG Root X1 in /etc/ssl/certs/, so api.weather.gov's Let's Encrypt chain validates with nothing embedded in the sketch.

6.3 Parsing the observation

const char* w = strstr(resp, "\"temperature\"");
const char* p = strstr(w, "\"value\"");   // NWS format
p = strchr(p, ':');
p++;                                        // skip ": "
int sign = 1;
if (*p == '-') { sign = -1; p++; }
int c = 0;
while (*p >= '0' && *p <= '9') {
  c = c * 10 + (*p - '0');
  p++;
}
if (*p == '.' && *p + 1 >= '5') { c++; }    // round up .5+
return sign * c;                            // whole degrees C

No JSON library needed — the code finds "temperature" then "value" and hand-parses the integer with one decimal, rounding halves up. A null reading or a missing field returns -1000 (shown as NO NET).

6.4 The display loop and the LED rule

void setLeds(int f) {
  bool hot = (f >= 99);                     // the one-line threshold
  analogWrite(LED3_R, hot ? 255 : 0);       // PWM is inverted
  analogWrite(LED3_G, 0);
  analogWrite(LED3_B, hot ? 0 : 255);
  digitalWrite(LED4_R, hot ? LOW : HIGH);   // active-low
  digitalWrite(LED4_G, HIGH);
  digitalWrite(LED4_B, hot ? HIGH : LOW);
}

// in loop(): convert C → F, show on the matrix
int f = (c * 9 + 2) / 5 + 32;   // rounded C→F
setLeds(f);
if (f < 100) {
  matrix.textFont(Font_4x6);
  matrix.beginText(0, 1, 255, 255, 255);
  matrix.print(num);            // e.g. "95F"
  matrix.endText(NO_SCROLL);    // static 5 s
  delay(5000);
}

The °F conversion uses integer math with a rounding constant (+2), and 2-digit temperatures are rendered static in Font_4x6 for readability. Everything above 99 °F scrolls instead.

7. Build & Flash

git clone https://github.com/charlesscrimpshire/unoq-weather-matrix.git
cd unoq-weather-matrix

ls /dev/ttyACM*   # typical UNO Q port

./scripts/flash.sh

arduino-cli compile --fqbn arduino:zephyr:unoq unoq-weather-matrix
arduino-cli upload -p /dev/ttyACM0 --fqbn arduino:zephyr:unoq unoq-weather-matrix

8. The Linux Companion

The MCU can't touch LED1/LED2 — they live under the Linux side. A 30-line script closes the loop:

URL = "https://api.weather.gov/stations/KLUL/observations/latest"
LEDS_BLUE = {"red:user": 0, "green:user": 0, "blue:user": 1,
             "red:panic": 0, "green:wlan": 0, "blue:bt": 1}

def set_leds(mapping):
    for name, value in mapping.items():
        with open("/sys/class/leds/%s/brightness" % name, "w") as f:
            f.write(str(value))

# every 30 s: fetch KLUL, convert to °F, flip the two LEDs
f = int((value * 9 + 2) / 5 + 32)
set_leds(LEDS_RED if f >= 99 else LEDS_BLUE)

Deploy and start it on the board's Linux side with:

./scripts/run_temp_leds.sh

That pushes temp_leds.py to /home/arduino/ and launches it in the background with logs at /home/arduino/temp_leds.log.

9. Troubleshooting

10. The Router Socket-Leak Fix

The UNO Q's networking runs through a companion process (arduino-router, a Go binary on the Linux half) that proxies RouterBridge calls over TCP/TLS. While this project ran for hours with the network down, that router slowly leaked sockets until it crashed.

// EOF or timeout WITH data: deliver the bytes
if n > 0 {
    return res(buffer[:n], nil)
}
// clean EOF: close and forget the socket
delete(liveConnections, id)
_ = c.Close()

After re-flashing and rebooting, the router's fd count stayed flat (11–12) over 2.5 minutes of live fetches with no accumulating CLOSE-WAIT — the leak is gone.

11. Next Steps & Ideas

Once the matrix is alive, there are easy ways to level it up:

• Weather, not just temp — pull conditions from the same observation (wind, humidity) and show short icons between readings.
• Auto location — ask the NWS API for the nearest station to a configured lat/lon instead of hardcoding KLUL.
• Sunset-aware colors — let the LED threshold color shift (e.g. amber at night) based on the observation's timestamp.
• Local sensor — add a wired temp/humidity sensor on the MCU as a check against the station.
• History — log readings on the Linux side and render a tiny trend sparkline on the matrix.
